Optocopler

TRADERS SUPPLIERS & STOCKIST

MOC3020

Number of Channels:1 Channel
Isolation Voltage: 5000 Vrms
If - Forward Current: 50 mA
Vf - Forward Voltage: 1.2 V
Pd - Power Dissipation: 300 mW
Off-state Output Voltage-VDRM: 400 V

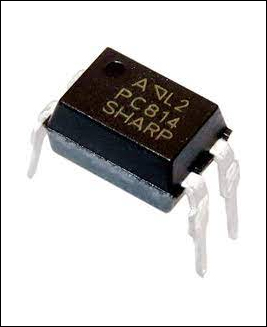

PC814A

AC input
High isolation voltage between input and output ( V : 5 000Vrms )
Current transfer ratio : CTR : MIN. 20% at I F = ± 1mA, VCE = 5V

MOC3083M

Number of Channels:1 Channel
Isolation Voltage: 5250 Vrms
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.3 V
Pd - Power Dissipation: 250 mW
Off-state Output Voltage-VDRM: 800 V

CNY173M

Number of Channels:1 Channel
Isolation Voltage: 4170 Vrms
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.65 V
Output Type: NPN Phototransistor
Current Transfer Ratio - Min: 100 %
Current Transfer Ratio - Max: 200 %

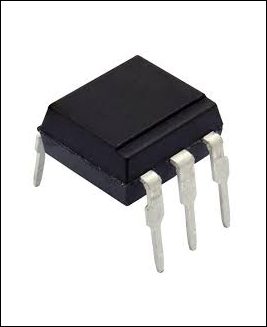

CNY17-1M

Number of Channels:1 Channel
Isolation Voltage: 5000 Vrms
If - Forward Current: 60 mA
Output Type: NPN Phototransistor
Current Transfer Ratio - Min: 40 %
Current Transfer Ratio - Max: 80 %

CNY17F2

Number of Channels:1 Channel
Isolation Voltage: 5000 Vrms
If - Forward Current: 60 mA
Output Type: NPN Phototransistor
Current Transfer Ratio - Min: 63 %
Current Transfer Ratio - Max: 125 %

CNY17-2

Number of Channels:1 Channel
Isolation Voltage: 5000 Vrms
If - Forward Current: 60 mA
Output Type: NPN Phototransistor
Current Transfer Ratio - Min: 63 %
Current Transfer Ratio - Max: 125 %

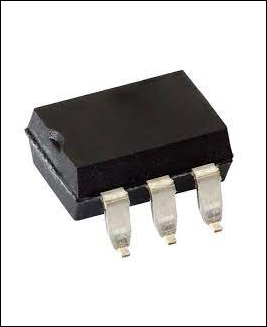

MOC3052SR2M

Zero-Crossing Circuit:Without Zero-Crossing Circuit
Number of Channels:1 Channel
Isolation Voltage: 4170 Vrms
If - Forward Current: 60 mA
Output Type: PhotoTriac
Vf - Forward Voltage: 1.18 V
Pd - Power Dissipation: 330 mW

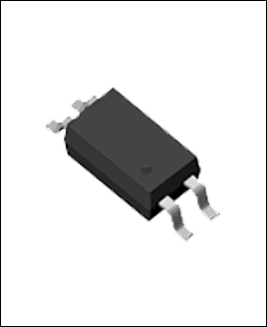

EL3083S1(TA)-V

Zero-Crossing Circuit:Without Zero-Crossing Circuit
Triac & SCR Output Optocouplers 800PBV 5000Vrms -55 to +100 Op Temp

EL3H7(B)(TA)-VG

Number of Channels:1 Channel
Isolation Voltage: 3750 Vrms
Packaging: Reel
Output Type: NPN Phototransistor

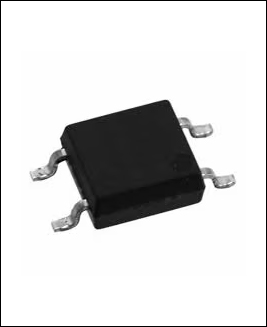

EL357N(B)(TA)-G

Number of Channels:1 Channel
Isolation Voltage: 3750Vrms
Current Transfer Ratio (Min): 50% @ 5mA
Current Transfer Ratio (Max): 600% @ 5mA

EL357N(C)(TA)-G

Number of Channels:1 Channel
Isolation Voltage: 3750Vrms
Current Transfer Ratio (Min): 200% @ 5mA
Current Transfer Ratio (Max): 400% @ 5mA

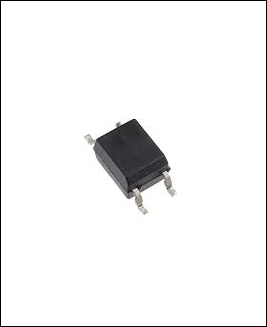

EL817S1(C)(TU)-F

Voltage - Isolation:5000Vrms
Current Transfer Ratio (Max): 160% @ 5mA
Current Transfer Ratio (Min): 80% @ 5mA
Input Type: DC
Voltage - Forward (Vf) (Typ): 1.2V
Voltage - Output (Max): 35V

LTV-814S-TA1

Number of Channels:1 Channel
Isolation Voltage: 5000 Vrms
Current Transfer Ratio (Min): 20 %
Current Transfer Ratio (Max): 300 %
Vf - Forward Voltage: 1.4 V
Maximum Collector Emitter Voltage: 35 V

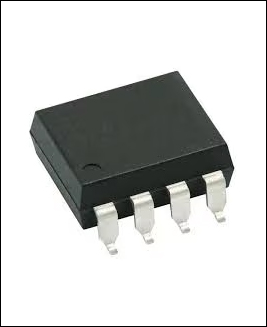

6N139-500E

Number of Channels:1 Channel
Isolation Voltage: 3750 Vrms
Vf - Forward Voltage: 1.4 V
If - Forward Current: 1.6 mA
Vr - Reverse Voltage: 5 V
Pd - Power Dissipation:135 mW

6N137S

Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1000 V/μs
High speed: 10 MBd typical
+5 V CMOS compatibility
Pure tin leads
Guaranteed AC and DC performance over temperature
Low input current capability of 5 mA

EL3023STA

Output Type:Triac
Voltage – Off State: 400V
Current – LED Trigger (Ift) (Max): 15mA
Current – On State (It (RMS) (Max):1.18V
Current – DC Forward (If) (Max): 60mA
Operating Temperature:-55 C ~ 100C

EL3041S(TA)-V

High isolation voltage between input and output (Viso=5000 V rms ) Zero voltage crossing

EL3063S(TA)

Package/Case: PDIP-6 Gull Wing
Zero-Crossing Circuit: With Zero-Crossing Circuit
Output Type: PhotoTriac
Number of Channels: 1 Channel
Isolation Voltage: 5000 Vrms
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.5 V
Pd - Power Dissipation: 330 mW
Off-state Output Voltage - VDRM: 600 V

We are Stockist & Traders of Electric Components Active & Passive Components.
